Products:

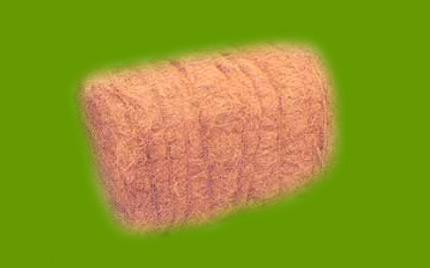

Decorticator Coir Fiber
Sample Product

Coir fibre is obtained from the fibrous husk covering the inner shell of the coconut fruit and is the raw material for the coir Industry. The coir fibre is one of the hardest natural fibres available Because of its high content of lignin; coir is much more advantageous in different Application for erosion control, reinforcement and stabilization of soil and is preferred to any other natural fibers.

Specifications:
1) Moisture content below 15%
2) Impurity content below 1.5%
3) Colors light brown (natural)
4) Dust contain 4%
5) Packing bales (approximate weight 50kg)
6) Loading FEU: 20 MT
7) Fiber length:5cm-10cm (40%); 10cm-15cm (60%)



Coir Yarn
Sample Product


Coir Yarn is generally of 2 ply, spun from coir fibre by hand with the help of traditional ratts and fully automatic spinning machines etc. The Coir yarn is of different qualities/grades based on the quality of fibre used and the nature of twist. Available in bales, cut length for various industrial and agricultural purposes.

Types Of Yarn

(1)Anjengo
(2)Aratory
(3)Alapat / Ashtamudi
(4)Quilandy
(5)Vycome.
(6)Beach
(7)Roping Beypore

Top


Curled Rope/ Twisted Coir Rope
Sample Product

Used as a basic raw material in the production of rubberised coir mattress popularly known as orthopaedic mattress, available in coils

Specification
Weight (Std) 35 KG
Height 35-37 cm
Dia 50-60cm
Rope Dia 2 cm
Twist or Knot per feet 16-18
Moisture and Dust Below 15%
Loadability
Loading FEU 25 MT(approximately)





Top

Doormat
Sample Product

Corridor Mat

Unlike Brush Mats, the surface of these mats have ribbed effect and are reversible.It can filter the dust to be collected separately. Also known as Hollander Mats or Dutch Mats. Available in natural, bleached and solid colours and woven designs.

Specifications
Quality Type of warp yarn Ends per dm Type of weft yarn Runnage m/kg. Mass gm/m2
RC2
Rope yarn
5
Aratory
240
4000
WC2
Rope yarn
4
Vycome
240
3650




Loadability




Weight
Loading FEU
Specifications
gm/m2
oz/ft2
m2
ft2
RC2
4000
13.1
2788
30000
WC 3
3650
11.9
3252
35000




Dimension of Doormats .



Size in Inch
Sq. Ft.
Hollander Mats
16” X 9”
1.00
Available
10” X 18”
1.25
Available
11” X 18”
1.33
Available
12” X 18”
1.5
Available
11” X 20”
1.5
Available
11” X 21”
1.6
Available
12” X 20”
1.66
Available
12” X 21”
1.75
Available
13” X 22”
2.00
Available
14” X 24”
2.33
Available
15” X 27”
3.00
Available
18” X 30”
3.75
Available
18” X 36”
4.50
Available
Any Special Size
-
Available



Top

Carnatic Mats
Sample Product



Vycome yarn woven onto a jute base specially spun thin. These elegant mats come in a low pile height available in tile designs.









Specification

Quality
Slack Chain
Tight chain
Weft
Pile
Construction
Ends per dm
Picks per dm
Pile height mm
Mass gms/m2
VC8
2 or 3 ply Jute
4 or 4 ply Jute
3 ply jute
Vycome
Warp cut pile
17
52
13
4350
VC 10 (SPL-C1)
2 ply Jute
Vycome
Vycome
Vycome
Warp cut pile
14
40
19
4200





Loadability




Weight
Loading FEU
Thickness
Specifications
gm/m2
oz/ft2
m2
ft2
mm
inch
VC-8
350
14.2
2750
29500
13
1/2
SPL-C1
4200
13.7
2850
30500
19
3/4



Dimension of Doormats



Size in Inch
Sq. Ft.
Carnatic
16” X 9”
1.00
Available
10” X 18”
1.25
Available
11” X 18”
1.33
Available
12” X 18”
1.5
Available
11” X 20”
1.5
Available
11” X 21”
1.6
Available
12” X 20”
1.66
Available
12” X 21”
1.75
Available
13” X 22”
2.00
Available
14” X 24”
2.33
Available
15” X 27”
3.00
Available
18” X 30”
3.75
Available
18” X 36”
4.50
Available
Any Special Size
-
Available

Top

Creel Mat
Sample Product
Thin Brush mats in natural, bleached or printed variants, available in attractive designs,shapes and in any sizes.



Specification

Quality
Slack Chain
Tight chain
Weft
Pile
Construction
Ends per dm
Picks per dm
Pile height mm
Mass gms/m2
VC1
-
Vycome / Alapat
Vycome
Vycome
Warp cut pile
9
25
22
5400
VC2
-
Vycome / Alapat
Vycome
Vycome
Warp cut pile
9
25
25
6000
VC3
-
Vycome
Vycome
Vycome
Warp cut pile
9
25
28
6000



Loadability




Weight
Loading FEU
Thickness
Specifications
gm/m2
oz/ft2
m2
ft2
mm
inch
VC1
7500
24.4
2025
21800
25
1



Dimension of Doormats



Size in Inch
Sq. Ft.
Creel
16” X 9”
1.00
Available
10” X 18”
1.25
Available
11” X 18”
1.33
Available
12” X 18”
1.5
Available
11” X 20”
1.5
Available
11” X 21”
1.6
Available
12” X 20”
1.66
Available
12” X 21”
1.75
Available
13” X 22”
2.00
Available
14” X 24”
2.33
Available
15” X 27”
3.00
Available
18” X 30”
3.75
Available
18” X 36”
4.50
Available
Any Special Size
-
Available

Top


Widely recognized as the most elegant doormat due to its dense pile and ability to render complex designs smoothly. These are thick heavy-duty doormats either with a prints on a dense coir fiber pile or with attractive inlaid designs.



Specifications

Quality
Slack Chain
Tight chain
Weft
Pile
Construction
Ends per dm
Picks Per dm
Pile height mm
Mass gms/m2
FM2
Vycome / Alapat
/ Anjengo
Vycome/ Alapat
/ Anjengo
Vycome
Retted FiberGrade 1 or 2
Inserted fiber
12
12
28
7800
FM3
Vycome / Alapat
/ Anjengo
Vycome/ Alapat
/ Anjengo
Vycome
Retted Fiber Grade 1 or 2
Inserted fiber
14
14
32
8400



Loadability



Weight
Loading FEU
Thickness
Specifications
gms/m2
oz/ft2
m2
ft2
mm
inch
FM2
7800
25.4
1550
16500
28

11/8



Top

Coco Brooms
Sample Product
Midribs of coconut leaves are used to make brooms of different types which are used for cleaning rough grounds and floors. These brooms are ideal for stiff sweeping jobs such as sweeping fallen leaves and cleaning between stones etc

Technical Specification


1.BROOM MADE FROM COCONUT 1000MM X 700GR.5ROUND WIRE WITH WOODEN PLUG.

2.BROOM GAL.WIRE 1.6MM DIA L 150MM TOP25MM L900/W650 5R W-OUT WOODEN

3.BROOM MADE FROM COCONUT 900MMX650GR.4ROUND WIRE WITH OUT WOODEN PLUG

4.BROOMS G.WIRE 1.6MM DIA L150MM TOP25MM L900/W500 4R W-OUT WOOD.

5.BROOM MADE FROM COCONUT 900MMX650GR.4ROUND JUTE


N.B: We also manufacture coconut brooms as per customers specification

Top

Coir Briquettes / Coir Pith / Cocopeat :


Cocopeat is the 'coir fiber pith' or 'coir dust' produced as a bi-product during the extraction of coir fibre from husk. Cocopeat is a multi-purpose soil conditioner and surface mulch/rooting medium. It is consistent and uniform in texture. It is a completely homogenous material composed of millions of capillary micro-sponges, that absorb and hold up to eight times it's own weight in water. The natural pH of 5.7 to 6.5, plus an unusually high Cation Exchange Capacity - and Easy Available Water assures that coir will hold and release nutrients in solution over extended periods without additional watering.
The coir pith is cleaned and sieved before it is compressed . For easy transportation and usage it is compressed into a 650 gm briquette or a 5 kg block.

5 kg Block

Characteristics & Benefits of Cocopeat

Naturally the best growing medium features the following most desirable qualities for potting substrates:

Chemical

  • High water holding capacity used as hydroponics
  • Acceptable pH
  • Acceptable EC & CEC
  • Excellent wetability - superior to peat
  • Ability to retain nutrients against leaching and to buffer supply

Physical

  • Unique water holding capacity
  • Good drainage/aeration
  • Less shrinkage
  • Retains physical properties longer
  • Light weight
  • Easier wetability than peat
  • Unlike sphagnum peat, there are no sticks

Biological

  • No pests, weeds or diseases

General

  • Odorless and pleasant to handle
  • Natural and renewable resource
  • Uniform in composition



Special Benefits

• 100% Organic renewable resource
• Excellent friability leads to good root growth and plant vigor.
• Coir dust readily absorbs water, re-wets far more easily than sedge peat - even when completely dry, thus reducing costs of wetting agents.
• Coir reduces watering frequency without plant stress, thus reducing labour cost and minimizing loss through better water conservation.
• Professional grower trials indicate that Coir reduces algae and thereby reduces fungus gnat and shore fly population.
• Coir increases shelf life of plants and retains their physical properties longer.


Nutrient Content in Coir Pith/ Cocopeat

Nutrients

Values

Nutrients

Values

Nitrogen

0.26%

Calcium

0.40%

Phosphorous

0.01%

Magnesium

0.36%

Potassium

0.78%

Iron (ppm)

0.07

Organic Carbon

0.29%

Manganese (ppm)

12.50

Lignin

30%

Zinc  (ppm)

7.50

Cellulose

26%

Copper (ppm)

3.10

LOADABLITY

Item

Palletized

Non Palletized

Description

20ft HC

FEU

TEU

FEU

Nos. of Blocks Per Container

2300

5060

2600

5200

Nos. of Pallets (Blocks)

10

22





Weight of Cargo (Blocks)

11.5 MT

25.30MT

13 MT

26 MT

Size of Block: 30 x 30 x 15 (ccm)











Nos. of Briquettes Per Container

20,000

40,000

22300

41500

Nos. of Pallets (Briquettes)

10

20





Weight of Cargo (Briquettes)

13 MT

26 MT

14.5 MT

27 MT

Size of Briquette: 20 x 10 x 6 (ccm)










Usage:

5kg Blocks

Specially prepared for potting mixes and soil conditioning, Seed Raising substrates and for Golf Green construction.

650 gm Briquette

This is specially made for as retail pack for home gardening and horticulture.

It can be used in farms, greenhouses horticulture, hydro seed spray, landscape and
as a substitute for potting soil.

Cocopeat as a soil conditioner and growing medium is excellent for growth of:

a. Tomatoes
b. Geraniums
c. Orchids
d. Cactus
e. Roses
f. Lily
g. Mushroom , etc

Additional Information:.

1. Coco peat block is slightly hard and some form of equipment is required to break it. For example, using the wheels of a bucket shovel tractor to run over the 5 kg blocks could easily break it.

2. To break the briquette soak the 650gm briquette with 2 liters of water for about 20-30 minutes.

Top

COIR TOY
 Attractive and heart touching toys are made with coir fiber. One can find different models of coir toys such of animals, trees, etc. This models are available in small and big size.

Dragon


COIR MACHINARIES
A. FIBER UNIT SECTION

1.Coir Decordicator

2.Coir husk Crusher

3.Balling press

4.Screener

B. SPINNING RATT SECTION

1. Automatic Double Head Spinning Machine

2. Motorise Spinning Ratt

3. Manual Spinning Ratt

4. Willowing Machine

C. DOORMAT SECTION

1. Corridor Mat Frames

2. Pressing Vice

3. Neddle and Scssior

4. Wooden Looms



De-corticator

Mannual Spinning Ratt

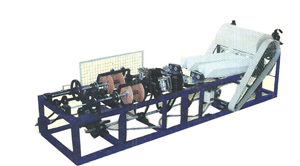

Automatic DoubleHead Spinning Machine
